WebInterface uploads are a very intuitive part of CrushFTP. The WebInterface supports HTML5 drag and drop for files and folders on all browsers except some IE versions.

There are no limits on file sizes in modern browsers, but IE still imposes file size limits on some older versions. CrushFTP also allows for automatic resume on files when there is a network interruption.

attachments

When items are dropped on the interface, or chosen using normal 'Browse...' methods, they are added to the upload queue. If you have a custom from defined for the user's uploads, then that is displayed asking for additional information about their upload. Custom forms can be defined on a per user basis and are very powerful and flexible in what they can do. Its a common requirement to want additional informations with uploads.

attachments

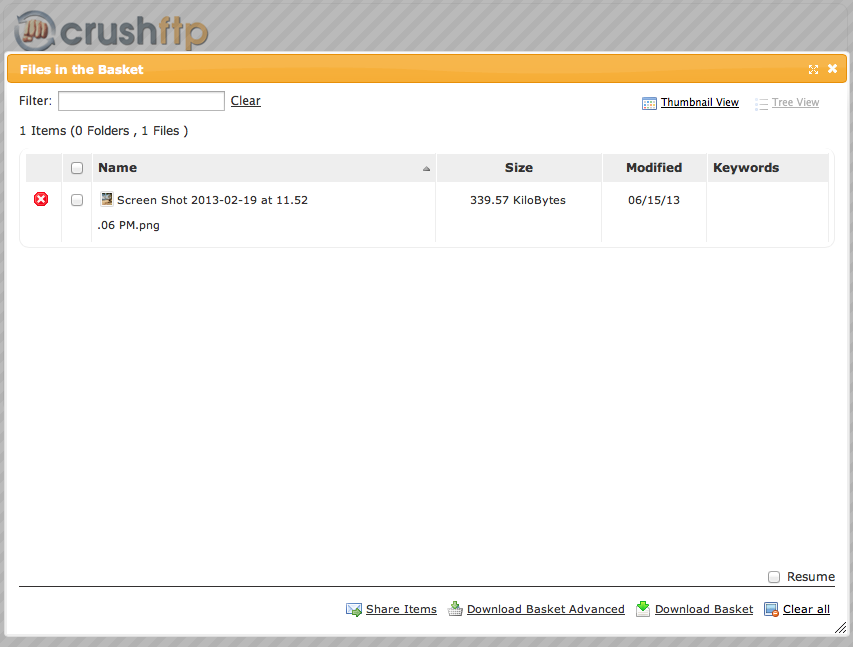

Its important to note that all text can be customized and or localized, as well as the color schemes used on everything. Headers, footers, buttons, backgrounds, and more. Its all fully customizable. You can set uploads to start when they are added to the queue immediately, or let the user batch them up and send an entire batch together.

attachments

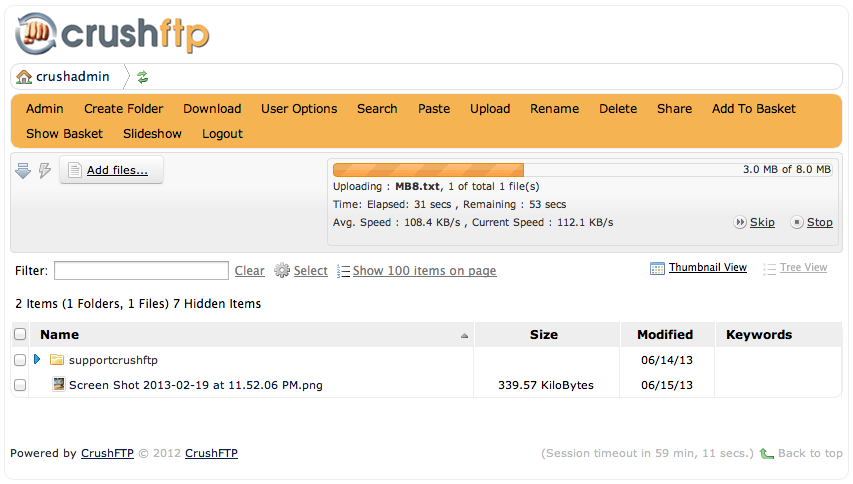

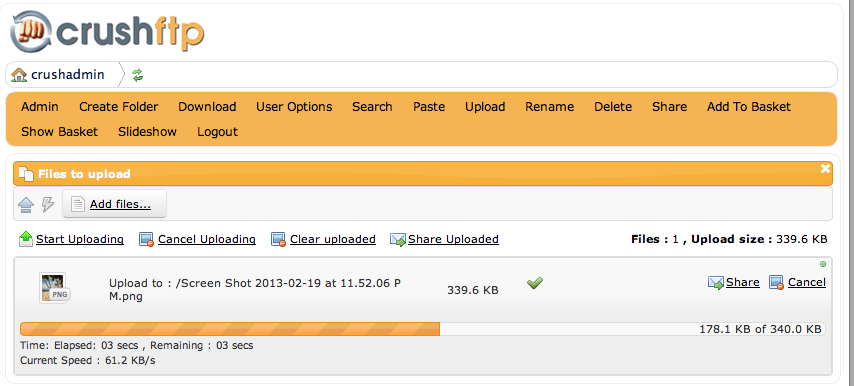

While an upload is in progress, it shows progress bars, speeds, time remaining, time elapsed for both the item its working on and the overall total of all items. The upload system isn't intrusive and you can continue adding items into the queue, removing items that haven't been processed, and navigating around other folders to target uploads to different locations. It is processing in the background.

You can see the progress of the individual items and the total, or close the individual part and just leave the total up while you continue navigating.

attachments

attachments

Once an upload has completed, the indicators next to the item indicate its complete, along with a popup 'growl' message confirming its completed.

attachments

You can also run integrate CrushTunnel accelerating connections over high latency connections. The interface is seamless with the existing interface, just two additional words show up indicating the number of channels the tunnel is using. So its not an alternate confusing interface the user has to understand.

Add new attachment

Only authorized users are allowed to upload new attachments.

List of attachments

Kind Attachment Name Size Version Date Modified Author Change note
png
basket.png 60.0 kB 1 25-Oct-2018 04:31 Ben Spink
png
confirm.png 76.1 kB 1 25-Oct-2018 04:31 Ben Spink
png
form.png 89.7 kB 1 25-Oct-2018 04:31 Ben Spink
png
progress1.png 73.2 kB 1 25-Oct-2018 04:31 Ben Spink
png
progress2.png 80.6 kB 1 25-Oct-2018 04:31 Ben Spink
png
upload1.png 121.9 kB 1 25-Oct-2018 04:31 Ben Spink
png
upload2.png 79.7 kB 1 25-Oct-2018 04:31 Ben Spink
png
upload3.png 66.7 kB 1 25-Oct-2018 04:31 Ben Spink
